Full-spectrum LED panels from 100W to 450W — compact board-format grow lights for tents, propagation racks, and small-room cultivation. OEM/ODM customizable with factory-direct pricing.
Grow light panels are single-board LED fixtures where all diodes are mounted on a flat PCB. Unlike bar lights that spread LEDs across multiple strips, panels concentrate output from one compact source — making them ideal for smaller spaces where a single fixture covers the entire canopy.
There are two common panel form factors: standard LED panels with high-density SMD arrays (2835 or 3030 chips), and quantum boards using Samsung LM301B or similar high-efficacy diodes. Both serve the same basic purpose — delivering full-spectrum light for plant growth — but they differ in chip quality, efficiency, and light distribution.
Panels are the most popular entry point for indoor growers moving from fluorescent or HID to LED because of their simple installation, broad compatibility with existing tent setups, and lower upfront cost compared to multi-bar fixtures.

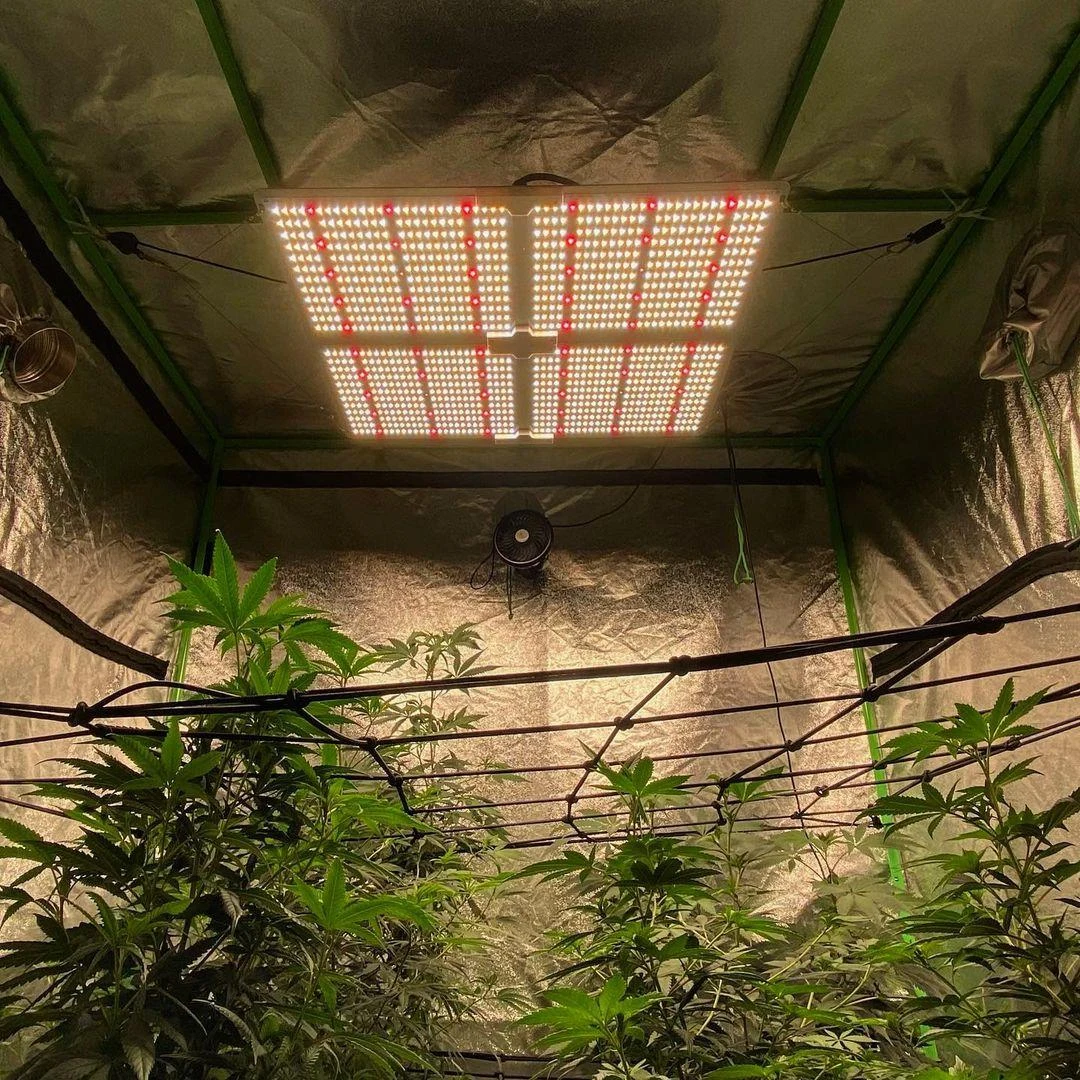

Full-cycle cultivation (veg to flower) in 2×2 to 4×4 ft setups.
Hardware: 120W (Full spectrum + 660nm red), Samsung LM301B chips
Control: 0–10V dimming for precise DLI management
Advantage: Maximum canopy uniformity for higher-BBCH cultivars

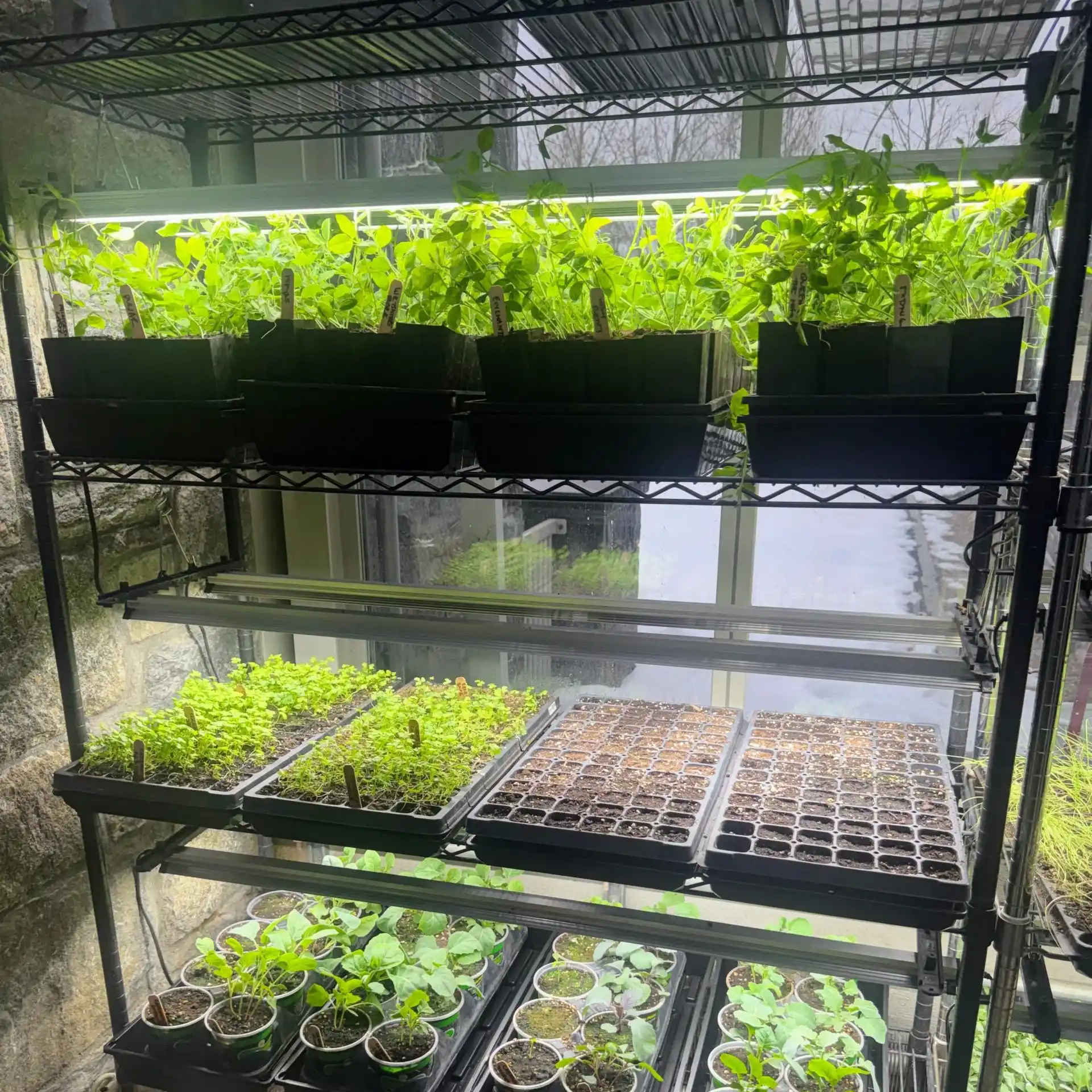

Wholesale seedling production without plant stretching.
Key Specs: 100W UL-certified, 200–400 µmol/m²/s
Design: 300×300 mm footprint
Advantage: Perfectly fits standard 1020 propagation trays on multi-tier racks
Indoor vertical farms and greenhouse operations.
Key Specs: Low-to-moderate PPFD (150–300 µmol/m²/s) for high energy efficiency
Design: Ultra-slim 55 mm profile
Advantage: Maximizes vertical tier density in racking systems
Output: 760 µmol/s PPF (2.2 µmol/J)
Control: 0–10V Dimming
Coverage: 2×2 to 3×3 ft tents
Efficacy: 2.7 µmol/J
Compliance: UL / CE / RoHS
Footprint: Compact 300×300 mm
Core: Samsung LM301B Chips
Efficacy: 2.7 µmol/J
Power: 110W / 220W / 450W Options
A side-by-side look at the three panel options so you can match the right model to your growing area and crop type.
| Spec | 120W Panel | 100W Panel (UL) | Quantum Board |
|---|---|---|---|
| Power | 120W | 100W | 110W / 220W / 450W |
| LED Chips | 3030 High Brightness | SMD 2835 | Samsung LM301B |
| PPF | 760 µmol/s | 500 µmol/s | 300 µmol/s @110W |
| Efficacy | 2.2 µmol/J | 2.7 µmol/J | 2.7 µmol/J |
| PPFD @30cm | 780 µmol/m²/s | 960 µmol/m²/s | 889 µmol/m²/s |
| Dimming | 0–10V | 0–10V | 0–10V |
| IP Rating | IP65 | IP65 | IP65 |
| Certifications | — | UL, CE, RoHS | FCC, CE, RoHS |
| Dimensions | 355×350×65 mm | 300×300×55 mm | 300×240×55 mm |
| Best For | Small tents, propagation | UL-market, tight spaces | Efficiency-focused, mid-scale |
In-house production from mold workshop to final assembly means we control every step of customization — from spectrum tuning to branded packaging.
| Customization Type | What We Can Do |
|---|---|
| Spectrum | Adjust R/B/WW ratios, add UV or far-red (385–730nm), tune to specific crops |
| Power & LEDs | Modify wattage, LED count, chip type (2835 / 3030), strip configuration |
| Appearance | Custom colors, housing material (ABS/aluminum), logo printing or laser engraving |
| Packaging | Retail box design, inner tray, barcode, multi-language labels — full brand packaging |
| Controller | Button layout, add/remove remote, timer presets, replace IR with Bluetooth/WiFi |
| Cable & Plug | Custom length (0.5–3.0 m), regional plugs (US/EU/UK/AU), USB-A/C or barrel jack |
| New Mold / ODM | Full product development: structural design, prototype, tooling, testing |
100–120W panels: 2×2 ft (flower) / 3×3 ft (veg). 110W quantum board: 2×2 ft. 220W: 3×3 ft. 450W: 4×4 ft. We provide PPFD coverage maps for each model at multiple hanging heights.
Quantum boards use higher-efficacy diodes (Samsung LM301B) arranged in a dense array, achieving 2.7+ µmol/J vs 2.2 µmol/J for standard 3030 panels. They also distribute light more evenly across the canopy. Standard panels are more cost-effective at lower power levels.
The 100W panel carries UL, CE, and RoHS. Quantum boards carry FCC, CE, RoHS. UL/ETL can be arranged for other models. We handle the certification process for your target market.
Yes. We can adjust the red/blue/white ratio, add UV (385nm) or far-red (730nm), or design a custom spectrum for your target crop and growth stage.
100–500 pcs depending on model and customization level. First-time orders can discuss lower quantities. Sample orders available before bulk commitment.
Existing models with logo: 3–4 weeks. New spectrum or PCB: 6–8 weeks. Regular bulk: 15–25 days after sample approval.
Send us your project details — area size, target crop, volume, and target market — and we’ll respond within 24 hours with a recommendation and pricing.
